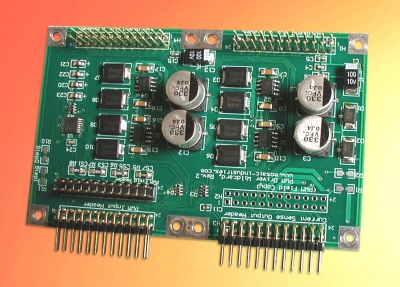

Mosaic has added a new member to its family of plug-in I/O modules called the Wildcards. Mosaicís new PWM Driver Wildcard makes it a snap to interface high current peripherals to your instrumentation or automation project and offers high precision current sensing with a programmable gain.

A pulse width modulated (PWM) signal is a periodic digital output waveform with a controlled period, duty cycle, and polarity. These waveforms are used to drive stepper motors, servo-motors, AC and DC relays, LEDs, and many other actuators.

The PWM Driver Wildcard, intended for use with Mosaicís new PDQ product line, converts the PDQ Board's logic-level PWM outputs to the high current drive required of heaters, solenoids, control valves, motors and relays.

The PWM Driver Wildcard features 8 channels of up to 5A current each with field voltages up to 26V; fast PWM switching, and 4 channels of current sensing with user-configurable gain.

A logic high (5VDC) placed on one of the inputs turns on its corresponding output. Two different field supplies each serving 4 channels can be used for controlling devices that require different voltages. Each of the PWM Driver's channels provides a MOSFET switch to turn ON/OFF current into the controlled device.

The PWM Driver Wildcard includes pre-coded software to easily configure the period, duty cycle, active state, alignment, resolution, and clock source of each PWM output.
