JNIOR PT100 RTD Analog Expansion Module

INTEG Process Group

4 of 7 by INTEG Process Group

Previous Next View All

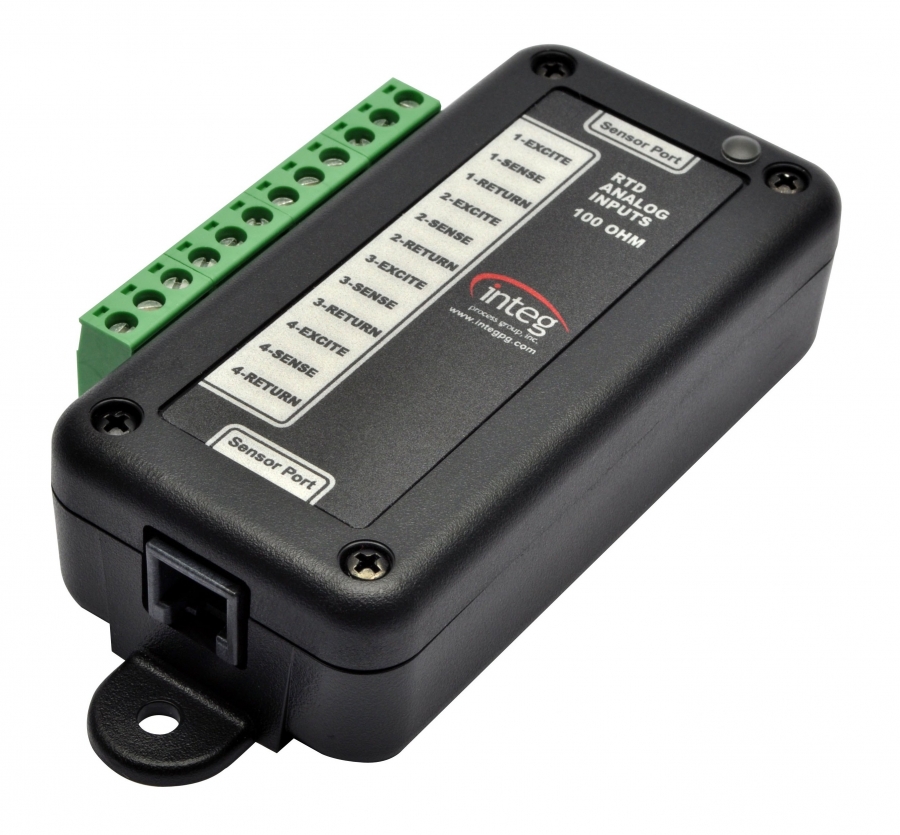

INTEG Process Group JNIOR PT100 RTD Analog Expansion Module - JNIOR PT100 RTD Analog Expansion Module by INTEG Process Group

JNIOR PT100 RTD Analog Expansion Module by INTEG Process Group

Related Technologies:

The JNIOR PT100 RTD Expansion Module provides the capability for 4 RTD sensors to be added to the JNIOR. The JNIOR automatically recognizes the RTD module when connected via the Sensor Port. The RTD points are integrated with the JNIOR I/O data structure and made available via the built-in web pages, Windows API (DLL), OPC Server, Modbus/TCP protocol, and JNIOR/TCP data packets. The module configuration is completed via the built-in web page.

PT100 RTD Expansion Module
• 4 RTD Inputs

Physical Size: 4 x 2 x 1.2 in. (102 x 51 x 31 mm)
Power Input: None required - Module draws power via Serial Port on JNIOR
Inputs – RTD: 4
Inputs - Range: Compatible with 2, 3 4 wire PT100, Connects as a 3 Wire RTD
Inputs - A/D Resolution: 12 bits
Inputs – Full Scale Accuracy: Better than 1% Full-Scale Range
Sensor Port: I/O Expansion via Sensor Port, Connector cable included
Operating Temperature: -15ºF to160ºF (-25ºC to 70ºC)
Storage Temperature: -40ºF to185ºF (-40ºC to 85ºC)
Humidity: 5 to 95% Non-Condensing
Installation - Wiring: 4 (3 wires ea.) - 2 piece connectors
Installation - Mounting: 2 piece connectors for wiring
Tabs with DIN-rail option available
Warranty: 2 Years

The JNIOR platform of Ethernet I/O modules is more than just I/O. Starting with a core compliment of digital I/O, the user can now easily add analog signals at any time. The JNIOR provides the central controller for seamlessly integrating the analog expansion modules. The modules can be plugged in and out while under power and with a reboot they are automatically recognized.

The JNIOR can be used as a simple I/O gateway or as an advanced controller. With built-in features, optional add-on free software and the ability to easily integrate the JNIOR into your own software applications, the JNIOR meets all your needs now and in the future.

Any combination of two plug-and-play expansion modules can be daisy-chained to the JNIOR via the Sensor Port.
