ARCHMI-707

APLEX Technology Co. INC.

3 of 4 by APLEX Technology Co. INC.

Previous Next View All

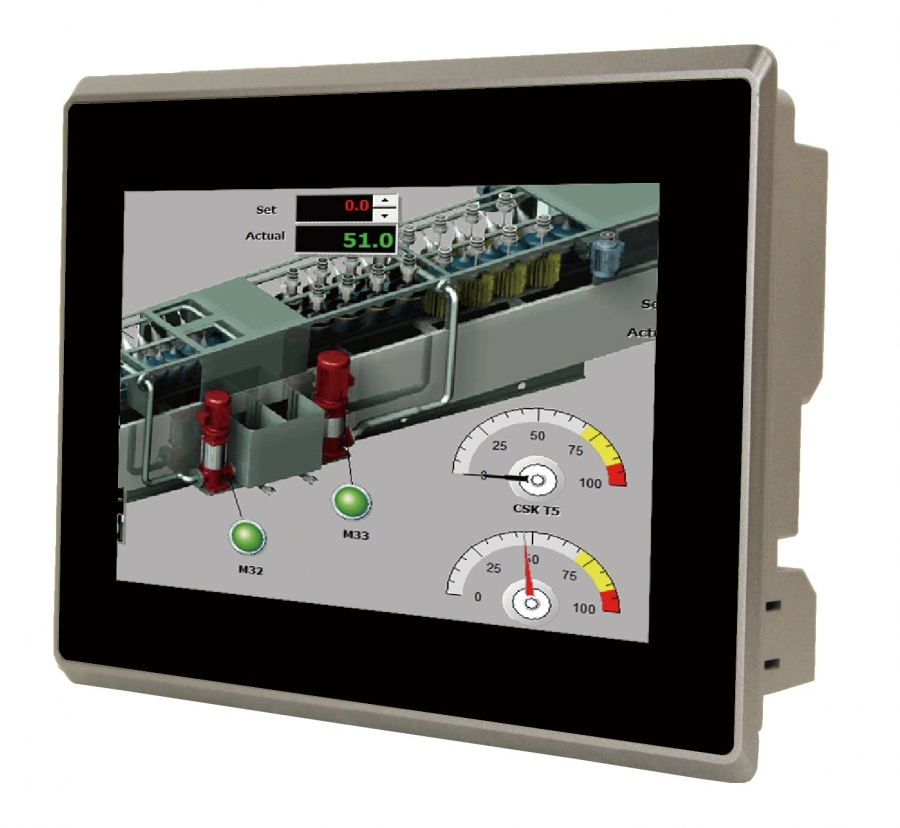

APLEX Technology Co. INC. ARCHMI-707  - ARCHMI-707  by APLEX Technology Co. INC.

ARCHMI-707 by APLEX Technology Co. INC.

Related Technologies:

Specifications:
SYSTEM Processor Intel Atom N2600 Dual core 1.6GHz processor
System Chipset Intel NM10
System Memory On Board 2GB DDR3 memory

External I/O Port (7"/8"/12"/15")
2xUSB 2.0 ports
2xRJ-45 GbE ports
1xDB-9 RS-232/422/485 COM1,Default RS-232
1xDB-9 RS-232
1xAudio line-out
1xDHMI port(optional)
1x3-pin Terminal Block DC power input
2xDB-9 RS-422/485 COM5/6 (only avalilabe in 12" & 15")


Storage
7"/8" with 1xHalf Size of 1.8" SATA HDD & 1 x SD slot
12"/15" WITH 1xHalf Size of 2.5" SATA HDD & 1 x SD slot
Expansion Slots 1xInternal Mini PCIe slot (Half size)
OSD support Windows Embedded Standard 7,XP Profssional ,XP Embedded,Embedded CE6.0

Display 7"/ 8" / 12.1" / 15" TFT-LCD
Max.Resolution 7" 800x480 / 8" 800X600 / 12.1" 800X600 / 15" 1024 X768
Max.Color 7" 262k / 8" & 12.1" & 15" 16.2m
Luminance(cd/m2) 7" 350 / 8" 350 / 12.1" 330 / 15" 400

Touch Screen Type
Resistive Touch,Projected Capacitive Touch(optional)
Light Transmission 80%,90%(optional)
Power Supply INPUT 9~36V DC 3pin DC Terminal Block
Mechanical Construction Aluminm front bezel and chassis
IP Rating IP65 compliant front panel
Mounting Panel/VESA 75x75 Mount
Weight 2.3Kg
Dimension(WxHxD)(mm) 200x146x39
Environment Specifications
Operating Temp. 0~50
Storage Temp. -20~60
Storage Humidity 10~90%@40C, non-condensing
Certificate CE/FCC ClassA
