APC-3228A

APLEX Technology Co. INC.

1 of 4 by APLEX Technology Co. INC.

Previous Next View All

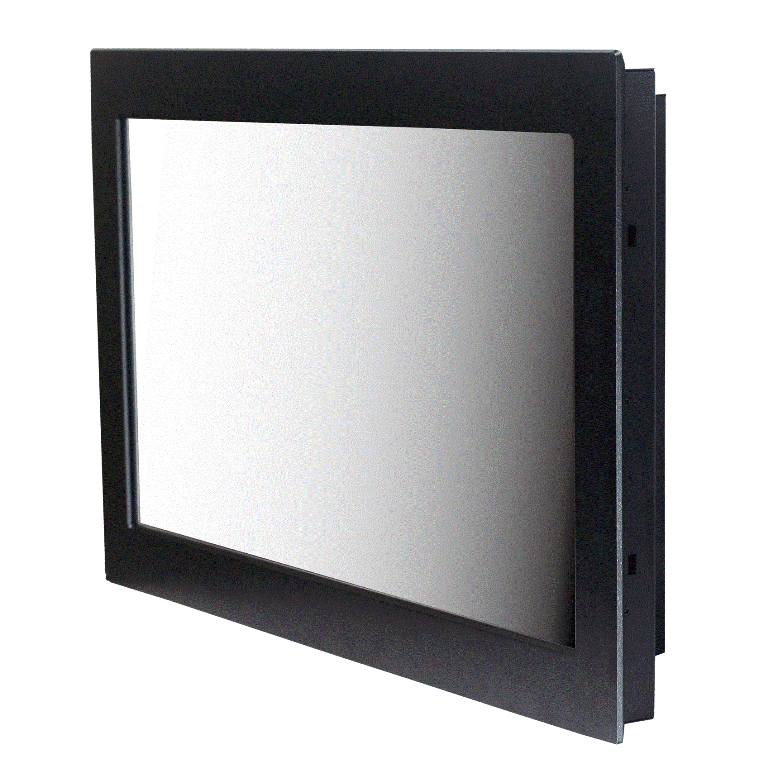

APLEX Technology Co. INC. APC-3228A - APC-3228A by APLEX Technology Co. INC.

APC-3228A by APLEX Technology Co. INC.

Related Technologies:

21.5" Full HD Intel P8400 and Intel GM45 chipset panel PC , 2GB DDR3 memory, 2.5"" SATA 2 320GB HDD, resistive touch, 1 X PCI slot, 9~32 V DC power input with adaptor, black Steel enclosure

Specifications:
System Processor
Intel Socket P Processor support up to Intel P8600
2.4GHz Processor, default Intel P8400 2.26GHz

System Memory2 x 204 Pin DDR3 SO-DIMM, up to 8 GB SDRAM
System Chipset Intel GM45 + Intel9M

External I/O Port
4 x USB 2.0 connectors
2 x GbE LAN connectors
1 x VGA
2 x RS-232 (COM1/2)
1 x terminal block for additional power switch
2 x LED light for power and HDD indication
1 x Audio line out/ MIC in
1 x DB-9 RS-422/485, default RS-485 (COM3)
1 x Rocker Switch for Power ON/OFF
1 x 3 Pin DC Power input terminal block

Storage
1 x 2.5” SATA HDD
1 x Internal CF Slot for option

Expansion Slots
1 x PCI / 1 x PCIe x1 for option

OS Support
Windows XP Professional, XP Embedded, Windows
Embedded Standard 7

LCD Display Type 21.5” TFT-LCD
Max. Resolution 1920x1080
Max. Color 16.7M
Luminance (cd/m2) 400
View Angle H:170° / V:160°
Backlight Lifetime 50,000 hrs

Touch Screen Type
Resistive Touch Screen (option)
Light Transmission 80%

Power Input 9~32V DC
Mechanical Construction Steel
IP Rating Front Panel IP65
Mounting Panel / VESA 100 x 100 Mount
Dimension 537(W)x342(H)x99(D) mm
Net Weight 11.5kgs
Environmental
Operating Temperature -10~50 °C
Storage Temperature -20~60 °C
Storage Humidity
10~90% @40 °C non-condensing
Certificate CE/FCC Class A
