APC-3919

APLEX Technology Co. INC.

2 of 4 by APLEX Technology Co. INC.

Previous Next View All

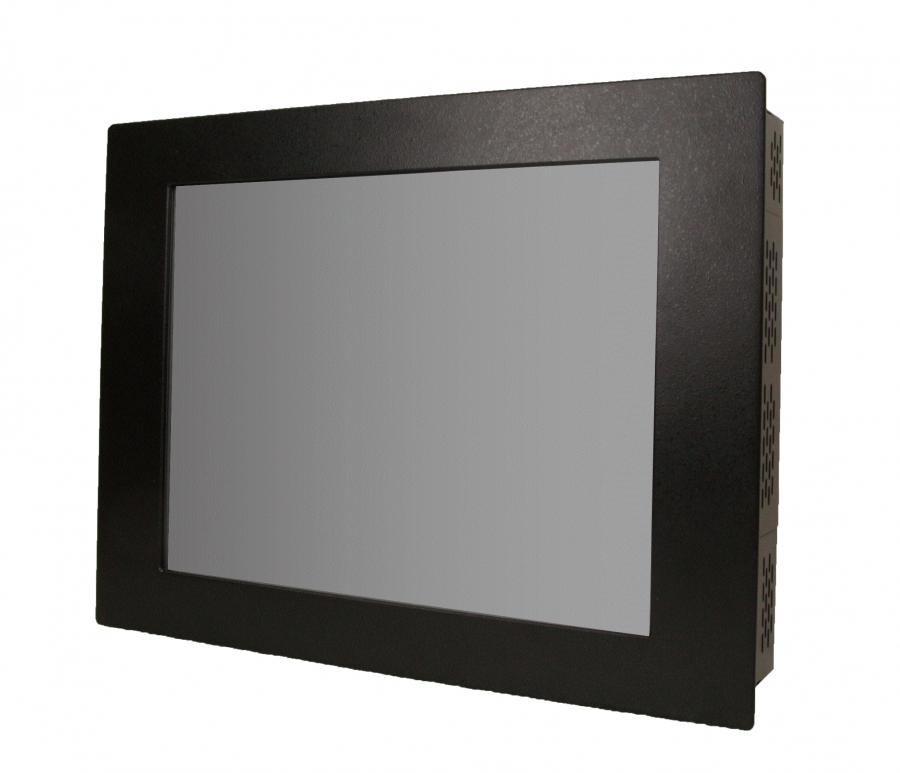

APLEX Technology Co. INC. APC-3919 - APC-3919 by APLEX Technology Co. INC.

APC-3919 by APLEX Technology Co. INC.

Related Technologies:

19" Fanless Panel PC / Intel QM67 Core i supported with 1 x PCIe x16 slot
Specifications:
System Processor
Intel® Socket G2 for Intel® Core™ i7/i5/i3 processor
Socket G2 i7-2710QE Quad Core 2.1G (TDP 45W) (Embedded CPU)
Socket G2 i5-2510E Dual Core 2.5G (TDP 35W) (Embedded CPU)
Socket G2 i3-2330E Dual Core 2.2G (TDP 35W) (Embedded CPU)

System Memory 2 x 204-pin 1333/1066 DDR3 dual-channel SO-DIM, up to 16GB
External I/O Port
.4 x USB 2.0
.2 x GbE RJ45 LAN
.1 x DVI-I
.2 x DB-9 COM 1/2 RS-232
.1 x DB-9 COM 3 RS-422/485 (default RS-485)
.1 x DB-9 COM 4 RS-232
.1 x Audio (Line out, MIC out)
.1 x 2 pin power switch connector
.1 x 8 pin terminal block 3in/out/VCC/GND for option
.1 x DC 3pin terminal block power connector 9~32V
.2 x LED indication for Power and HDD
Storage
.2 x 2.5 SATA HDD Space
.1 x External CF slot

Expansion Slots
1 x Mini-PCIe slot on board
1 x PCle x 16(Defanlt)
1 x PCl slot (Option)

OS Support
Support Windows XP Pro, XP Embedded, WSE7

LCD
Display Type 19” TFT LCD
Max. Resolution 1280x1024
Max. Color 16.7M
Luminance (cd/m2) 350 nits
View Angle H: 170/V: 160
Backlight Lifetime 50,000hrs

Touch Screen Type
5 Wire Resistive touch (option)
Power Input DC Power input 9~32V
Mechanical Structure
Steel Front Panel and Chassis
Standard color : Black
IP Rating Front Panel IP65

Mounting Panel Mount
Front Bezel 484mm x 400mm
Environmental
Operating Temperature 0~50 °C
Storage Temperature 20~60 °C
Storage Humidity
10~90% @40 oC, non-condensing
Certificate CE / FCC Class A
