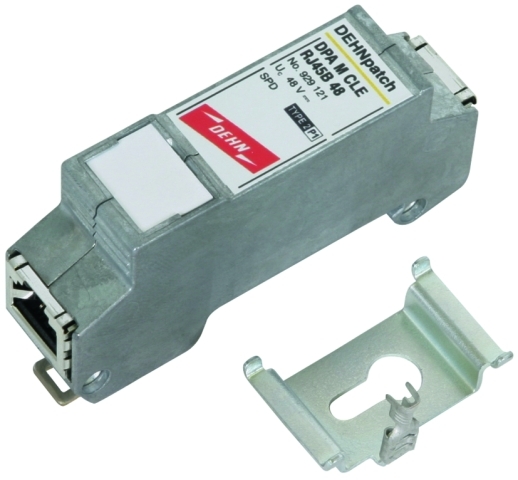

Dehn, Inc. DEHNpatch - DEHNpatch by Dehn, Inc.

DEHNpatch by Dehn, Inc.

Related Technologies:

The DEHNpatch arrester (SPD) is ideally suited for Industrial Ethernet, Power over Ethernet (PoE+ acc. to IEEE 802.3at up to 57 V) and similar applications in structured cabling systems according to class E up to 250 MHz. This SPD is designed for use in Category 5, 5e or 6 applications. This surge protector covers all 8 wires by means of powerful gas discharge tubes and one adapter filter matrix per pair and a complex array of silicone avalanche diode. The DEHNpatch multi-stage surge arrester also incorporates a high frequency noise filter providing a cleaner signal. This SPD is fully shielded with RJ45 sockets for DIN rail mounting. Accessories included are a earthing (grounding) bracket with flat (spade) connector sleeve.

Click Here for More Information

Additional Products

View All Dehn, Inc. Products

About Dehn, Inc.

Dehn, Inc.

DEHN is a world leading manufacturer of Lightning and Surge Protection for all low-voltage class power systems, measurement and control, instrumentation, communications and information technology. DEHN, with more than a 100 year history in lightning and surge protection, also contributes substantially to advances in Surge Protective Device (SPD) technology, through our research and development activities, and contributing with technical organizations through out the world.

DEHN's Surge Protective Devices (SPD) (also known as TVSS) are primarily of a modular DIN rail mounted design, and have ability to manage the affects of lightning current (10/350 ┬Ásec) and surge current (8/20 ┬Ásec) discharges. The transient voltage surge suppressors are designed for application on various conductor configured systems including, single and paired conductors, coaxial; and for protocols such as 4-20 mA loop, Ethernet, CAT 5 & 6, RS 485 and 232, Fieldbus Foundation and many others.

DEHN has products for earthing (grounding) as well as products designed, tested and approved for hazardous locations.   Class 1/ Div 1 & 2 arresters feature CSA, ATEX and Ex approvals typically for use in the Petrochemical industry and other process controls in hazardous locations.   DEHN has an extensive line of SPD products for these specialized applications including spark gaps for isolated flanges and cathodic protection system lightning & surge arresters.

DEHN is also a manufacturer of personal safety equipment for electricians and lineman with equipment for use up to 420 kV.   Arc Flash PPE, voltage detectors, earthing cables and clamps are some of the products in this line.
