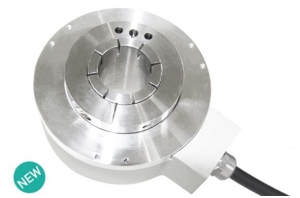

POSITAL has extended its portfolio of rotary encoders with a new family of through hollow incremental encoders. These devices are designed to be installed with the machine shaft passing through the sensor. They can be used to monitor rotary motion in a wide variety of machinery, including servomotors, material handling equipment and printing presses, offering cost-effective, space-saving solutions. They can be easily installed between the body of the motor and other components mounted on the shaft.
Easy Installation, Accurate Measurement
• Easy to Install, No Shaft Alignment Required
• Compact, Adjustable, and Versatile Design
• Variety of Shaft Bore Sizes from 10mm to 42mm, Including Imperial Sizes
• Install Directly on Shaft, No Need for Extra Coupling
• Wide Variety of Applications
Large Variety of Configurations
POSITAL’s through hollow encoders are available for shaft diameters ranging from 3/8 inch (9.5 mm) to 1-3/4 inch (44.5 mm). The smaller units (up to 14 mm shaft opening) have an external diameter of 2-1/4 inch (58 mm), while the larger units (5/8 inch to 1-3/4 inch shaft size) have external diameters of 3 or 4 inches (77 or 100 mm). Available resolutions for these devices extend from 360 PPR to 4096 PPR (pulses per revolution).
Encoders for Any Application
POSITAL’s through hollow encoders are an attractive option for machine builders and system integrators who are looking for accurate motion feedback devices that are easy to build into new or existing designs.
