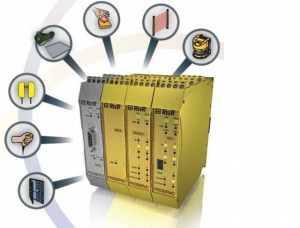

Mosaic
Modular Safety Integrated Controller
is the new revolutionary modular and configurable safety
controller from REER
This new safety controller is capable of monitoring many safety sensors
and commands at the same time. These can be safety light curtains,
safety photocells, emergency stops, safety mats, magnetic or mechanical
safety switches, two-hand controls, etc.
Thanks to the ’s modular and expandable structure it is
possible to adapt its I/O configuration and functionality to the demands of
each application. This makes a highly versatile and flexible
safety controller.
has solid state and/or relay outputs. They can be instantaneous or delayed.
Main Features
• Configurable safety controller
• Safety level: SIL 3, PLe, Cat. 4
• Easy and intuitive graphic configuration software (MSD - Mosaic Safety
Designer)
• Compact design:
o Single Main module dimensions 22.5 x 99 x 114.5 mm
• Max 72 inputs and 8 OSSD pairs
• Max 7 expansion units in addition to Master M1
• M1 stand alone main unit:
o 8 safety inputs, 2 OSSD pairs with separate EDM and Start/Restart
configurable via PC through USB interface
• MI8O2 expansion unit:
o 8 safety inputs, 2 OSSD pairs with separate EDM and Start/Restart
• MI8 and MI16 expansion units:
o With 8 and 16 safety inputs M1 Main Unit 22.5mm
o MO2 and MO4 expansion units:
o With 2 and 4 OSSD pairs with separate EDM and Start/Restart
• MR2 and MR4 relay units:
o With 2 and 4 guided contacts safety relays
• MB expansion units for connection to the most common industrial Fieldbus systems:
o PROFIBUS DP, DeviceNet, CANopen
• Memory card configuration storage (MCM - Mosaic Configuration Memory)
Safety Communication
Communication between units via proprietary high speed bus (MSC - Mosaic Safety Communication)
Simple diagnostics via LED signaling and configuration software.
2
Safety Designer (MSD)
Mosaic Safety Designer (MSD) software is a user-friendly configuration tool which makes the programming
the MOSAIC simple and safe. By selecting the functional icons programming by 'Drag & Drop' configures
any of the many safety functions.
Thanks to an accurate functional test feature incorporated into the Mosaic Safety Designer (MSD) software,
configuration errors are detected immediately. This also assures configuration errors cannot lead to an unsafe
situation and valuable time is not lost during the commissioning of the machine. In addition, a multi-level
password manager in the Mosaic Safety Designer (MSD) gives further security against nonauthorized
access to the configuration software.
The MCM is a memory card which can be used to save the configuration data for copying to a new MOSAIC
safety controller when required.
Safety level:
Cat. 4 SIL 3 - SILCL 3 PL e - Cat. 4
