EOS Type 2 & Type 4 Safety Light Barrier
Small Package with Robust Features……
EOS4 is an important new development in the field of
optoelectronic safety light curtains.
Innovative features include:
• Minimal cross section - 28 x 30 mm.
• No dead zone area on one side:

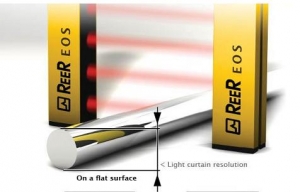

The position of first beam ensures that the sensing area
extends to end of the light curtain.
• Two L-mounted light curtains, e.g. Master-Slave,
maintains 40 mm resolution in the corner (models with
30 & 40mm resolution).
• Minimal dead zone on connector side.
• Easy connection and installation via standard M12, 5 & 8
pole connectors, with unshielded cables up to 100 m.
• Integrated safety functions, including self-monitoring of static outputs, control of
external contactors (EDM) and automatic/manual selectable Restart.
• Exceptional mechanical and electrical robustness are the result of extensive hands on
application experience.
• Operating temperature range -10 to 55 °C.
• Protection rate: to IP 65 and IP 67 simultaneously
High resistance to infiltration by dust and liquids in a highly compact light curtain.
• Models Master/Slave for cascade connection of two or three light curtains.
• 2 safety PNP static outputs.
EOS4 light curtains may be connected to the dedicated safety interfaces series AD SR,to
contactors actuated and controlled directly by the light curtain, or to safety PLCs or suitable
commercial safety modules.
Special models complying with “Directive ATEX” 94/9/EC - Dust Zone 22 - Gas Zone 2
available on request.
NEW PRODUCT
For more information call us 973-586-2500 for a copy of our new 2009 Reer Program
Catalog or visit us at www.norstat.com or the Reer website www.reer.com
January, 2009 - We are pleased to announce NORSTAT's appointment as the exclusive
North American Partner for the Reer product line. REER is a leading Manufacturer of Optoelectronic
Safety Sensors. The Reer product line includes opto-electronic safety light
curtains and grids, monitoring sensors, laser scanners, and dedicated interface modules.
