SSXYMicro-3A

Simple Step LLC

2 of 3 by Simple Step LLC

Previous Next View All
Simple Step LLC SSXYMicro-3A - SSXYMicro-3A by Simple Step LLC

SSXYMicro-3A by Simple Step LLC

Related Technologies:

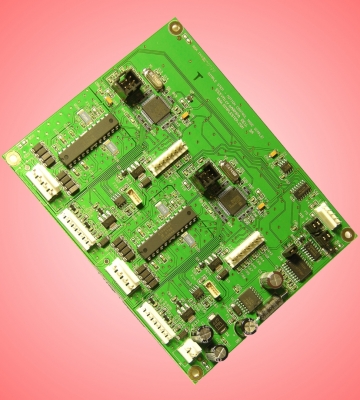

Dual axis motion controller with the following:

* RoHS compliant.
* RTOS, 32 bit and 8K IEEPROM are standard.
* SSXYMicro 8K IEEPROM per axis.
* 58 MHz Microprocessor Controller.
* Limit Switch Input (per axis).
* Optical Motor Home input (per axis).
* User programmable advanced acceleration and deceleration settings based on User Programmable Start Velocity, End Velocity and Slope. (per axis)
* User Programmable Full, 1/2, 1/4, 1/8, 1/16 and 1/32 step control (per axis).
* One (1) Bipolar Stepper motor drive (per axis).
* Single 15.0 - 50.0VDC operation.
* Up to 1.5 amp/phase, switching mode current controlled motor phase outputs (Software adjusted per axis).
* User Programmable Baud Rates (9600, 19.2K, 38.4K, 57.6K (default), 115.2K, 230.4K and 460.8K).
* Multiple boards on a single serial port and the ability to intermix Simple Step board types on the network
* Software network address switch select on every board.
* Simple Step® Network RS232 and RS422/RS485 communications (jumper selectable).
* RS422/485 120 ohm balance resistors on board (jumper selectable).
* Option Connector for later add-on or custom boards.
* Two (2) User Controlled Open Collector Output Lines (2-500ma Sink) (per axis).
* Three (3) User Input Lines (per axis).
* Software Programmable Home Sensor Check (per axis).
* Diode protected Home and Limit Sensor.
* On Board 3.3VDC and 5DC volt switchers with Power LED.
* Dual axis board Size 5.3" x 4.2" x 0.6"
* Large Dynamic Velocity range (from 1 step per second to 30,000 steps per second) per motor.
* Prescaler installed on all units.
* Software Programmable Motor Power Settings (256 power levels!) (per axis)
* Up to +/- 2,147,483,647 steps of motion.
* EMI (radiated) filtering on all boards to allow FCC and CE approvals.
* Simple ASCII command set allowing use of standard PC communications packages.
* Decimal or Hexadecimal ASCII numeric values can be used (per axis).
* Jog control for each axis (per axis).
* Single-ended Quadrature Encoder interface (per axis)
* SSWin Program FREE with each purchase. (Windows 95/98/NT/2000/XP)

Click Here for More Information

Additional Products

View All Simple Step LLC Products

About Simple Step LLC

Simple Step LLC

Complete, Inexpensive Serial Motion Controllers - Simple Step motion controllers are self contained OEM style controllers that only need a single voltage DC power supply, serial communications, and a stepping motor. The complete product line comes standard with translator and amplifier on board with user settable hardware or software current limiting for each axis. Motion controllers from single to multi-axis are available in a wide range of sizes that can control stepping motors from 0.1 amps per phase to as much as 6.25 amps per phase.
