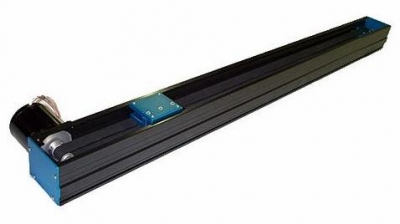

H2W Technologies Belt Stages - Belt Stages by H2W Technologies

Belt Stages by H2W Technologies

Related Technologies:

The BL Series belt drive stage is a low cost, durable and surprisingly quiet positioning stage that is well suited for both open and closed loop operation. The stage is capable of very slow speeds (< 0.001inches per second) to speeds greater than 100 inches per second. Stages are offered with travel lengths up to 134 inches (3400 mm). The BL stage offers a pulley system designed for long service life and dependable operation. An optional external cable carrier is offered for easy integration of cables and hoses. There are provisions for a linear encoder, which allow for dual loop operation in applications requiring precise positioning. The carriage is supplied with tapped holes for easy mounting of your payload.

Stages can operate either horizontally or vertically and can be supplied in compound configurations for multi-axis applications.

The BL stage is offered with a bellows option (folded way covers) with a 12:1 extension to compression ratio. The bellows help to protect the belt and pulley mechanisms from contamination in dirty environments.

Please call 661.251.2081 for more information.

Click Here for More Information

Additional Products

View All H2W Technologies Products

About H2W Technologies

H2W Technologies


H2W Technologies, Inc. is dedicated to the design and manufacture of linear and rotary motion products that are used in the motion control industry. We are committed to providing every customer with the optimal solution for their motion application in the shortest possible time, at the lowest possible cost using only the highest quality products.


We offer a complete line of linear electric motors including; single and dual axis linear steppers, DC brush and brushless linear motors, voice coil actuators, and AC induction motors.

Our high speed and high precision linear motor driven positioning stages are ideal for both single and multi-axis closed loop servo applications. We also offer a complete line of ball screw, lead screw and belt driven positioning stages. We can provide you either a standard or custom designed positioning stage by itself or as a complete turnkey solution with a servo amplifier, power supply and programmable motion controller.

Other motion control products include; limited angle torque motors for compact, limited angular excursion rotary servo applications, 3 phase brushless rotary servo motors with matching digital servo amplifiers and permanent magnet linear brakes for failsafe, zero power braking for baggage handling and people moving applications as well as amusement park rides.

H2W also offers design services for various types of electromagnetic devices such as magnetic latches, solenoids and rotary motion devices.

New products are constantly being developed, so please check our web site www.h2wtech.com for the latest developments and new product offerings.


H2W Technologies, Inc. has developed and implemented a quality management system to demonstrate its ability to provide consistently product that meets or exceeds customer requirements. Our quality Assurance procedures address customer satisfaction through the effective application of the quality system, including continual improvement and the prevention of nonconformity. The quality system complies with the international standard ISO 9001:2008.


With over 75 years combined experience in the linear and rotary motion field, our team of engineers can offer you the optimal solution to your most demanding motion control, requirements.

Our core engineering team which has worked together for over 25 years consists of: Dr. Walter Hinds - PhD Physics, Fred Wilson - MSEE, and Mark P Wilson - MSME.

Please call us anytime at (888)-702-0540 and talk directly with one of our design engineers. We will give you straightforward honest answers to all of your technical questions and we will provide you with a solution for all of your linear and rotary motion control applications.

Semiconductor, Military, Medical, Aerospace, Material Handling, People Moving, Amusement Park Rides Packaging, Automotive, and Clean Room
