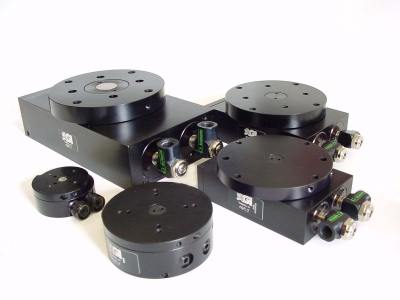

AGI Pneumatic Rotary Actuator by AGI American Grippers Inc
Related Technologies:
Pneumatic low profile compact rotary actuators with flange output are ideal for payloads from 1 lbs (.44Kg) to 30 lbs (13.6Kg). The standard rotations available are 45, 90, or 180 degrees. Patented built in adjustable hard stops on output flange prevent pinion breakage. The AGR units have zero backlash due to the drive pistons never bottoming out; this also achieves true force throughout the rotation and end of stroke. Dual bearing supported turn table provides an extremely compact package for tight space applications, and slip fit dowel pins make this a precise and repeatable pneumatic rotary actuator. Available options are: Mid stop and Manifold.
Max Payload Torque Max Rotation Weight Options
Kg lbs in/lb Nm Degrees kg lbs Manifold
AGR-1 .44 1.0 5 .56 180 .08 .2 See AGM
AGR-2 1.4 3.0 17 1.9 180 .55 1.2 See AGM
AGR-3 3.6 8.0 50 5.6 180 1.4 3.0 Yes
AGR-4 6.8 15.0 100 11.3 180 2.3 5.0 Yes
AGR-5 13.6 30.0 250 29 180 3.9 8.5 Yes
