Xz Brushless Linear Motor Positioning Stage

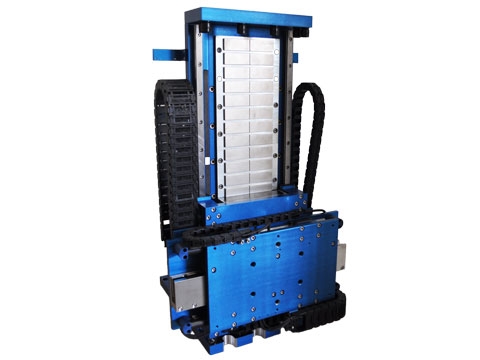

H2W Technologies introduces a high acceleration, brushless linear motor driven, XZ positioning stage gantry for controlled dual axis motion profiles of customer supplied payloads. The vertical axis dual rail stage (DRS) is a closed loop positioning system that can be used for high force positioning applications. The horizontal axis single rail stage (SRS) is a closed loop positioning system that can be used for low to medium force positioning applications. The stages are driven by brushless linear motors, guided by precision recirculating linear ball bearing blocks and rails. Each axis incorporates 1 micron resolution linear encoders. Dual shock absorbing dampers are incorporated into the stage to protect the stage and payload in the event of power failure. The dual axis system can also be supplied with fully integrated electronics to operate the stage under synchronized dual axis motion control. Brushless linear motor driven positioning stage gantries are ideal for applications that precision controlled synchronized motion profiles of customer payloads.
The vertical axis has a 13.8 in [350.5 mm] stroke; and generates 167 lbs [743 N] of force at 100% duty and 501 lbs [2224 N] of force at 10% duty. The horizontal axis has a 4 in [101.6 mm] stroke; and generates 50 lbs [222 N] of force at 100% duty and 150 lbs [666 N] of force at 10% duty.
Features:
- High force
- 2 axis motion control
- High acceleration
- Custom strokes and force configurations available
H2W Technologies is dedicated to the design and manufacture of linear and rotary motion products that are used in the motion control industry. The complete line of linear electric motors includes: single and dual axis linear steppers, DC brush and brushless linear motors, voice coil actuators, and AC induction motors. Also offered is a complete line of ball screw, lead screw and belt driven positioning stages. Other motion control products include: limited angle torque motors for compact, limited angular excursion rotary servo applications, 3 phase brushless rotary servo motors with matching digital servo amplifiers and permanent magnet linear brakes for fail-safe, zero power braking for baggage handling and people moving applications as well as amusement park rides.
With over 75 years combined experience in the linear and rotary motion field, the H2W Technologies team of engineers offers the optimal solution to the most demanding motion control requirements. For additional information please contact Mark Wilson at H2W Technologies, 26470 Ruether Avenue #102, Santa Clarita, CA 91350; Tel: 661-251-2081, Fax: 661-251-2067, E-Mail: info@h2wtech.com or visit the website at www.h2wtech.com.
