Trio

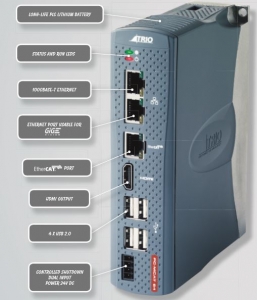

Trio's Pc Mcat 64

64 Axis EtherCAT Controller + PC

Trio’s PC-MCAT 64 is an innovative “Motion + PC Solution”. A powerful quad core Intel Atom processor is used to drive both a high performance motion controller and a compact PC that can run user applications under Windows. The PC-MCAT software uses a real-time extension to allow both Windows and the motion controller to run directly on their own processor cores. The motion controller’s own dedicated EtherCAT master Ethernet port can launch data packets with less than 1µsec of jitter. The 1.91GHz Atom processor is paired with 4 GBytes of RAM and a high speed 64 GByte upgradable SSD to give sufficient PC performance for many machine types. PC-MCAT is especially suitable where a machine type needs the software and hardware facilities of a PC paired with a powerful 64 axis motion coordinator. The HDMI port can be used to drive high resolution displays for sophisticated operator interfaces. The large 64 GByte SSD drive can hold vast amounts of machine data and recipes. Two GBit Ethernet ports are built into the PC-MCAT. These can be used for factory communications or connecting vision camera(s) whose data can be processed directly on the PC cores.

FEATURES
• Motion + PC Solution for Automation Machinery  Fanless compact PC with E3845 Quad Core Atom Processor at 1.91 Ghz
• Powerful up to 64 Axis EtherCAT Based Trio Motion Coordinator
• RTX64 Real Time Extension to allow Motion + Windows Running Directly on Their Own Processor Cores
• Plug and Play EtherCAT Configuration Expandable Support for Servo Drives, I/O and Devices From Over 100 Manufacturers
• Programmable In Easy TrioBASIC, built-in IEC 61131 or PC based Programming Languages Such As ‘C’
• Machine Execution Can Continue After Windows Crash
• 4 GByte RAM + 64 GByte Upgradable SSD
• Choose Windows or Linux Operating System
• Built-in GBit Ethernet Port For Vision Cameras


Click here to download the PDF
