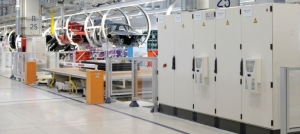

Rittal - Ts 8 Bayed Enclosure System











Rittal - Ts 8 Bayed Enclosure System

Ingeniously simple, fully symmetrical, and patented worldwide...
this is the successful formula behind Rittal’s TS 8 bayed enclosure system

◾ Rittal’s modular design allows for efficient system updates, flexible baying options and virtually endless configurations,
all based on a robust 16-fold tubular frame system
◾ The frame can hold weight loads up to 1,500 lbs. on the mounting panel and features multi-level mounting capability
for unsurpassed flexibility
◾ The 25 mm hole pattern allows components and accessories to be mounted in three directions – by height, width
and depth – which provides maximum space utilization (up to 30% more available space than traditional NEMA style
enclosures of equal dimension)
◾ The door is strengthened with an attached frame which includes holes on a 25 mm pitch pattern for the attachment
of ducts, cable harnesses, wiring plan pockets and much more
◾ The gasketed roof is secured with removable eyebolts that screw directly to the enclosure frame to seal out dirt
and moisture

Download the Brochure
