New Carlo Gavazzi Three Phase Power Analyzer











New Carlo Gavazzi Three Phase Power Analyzer

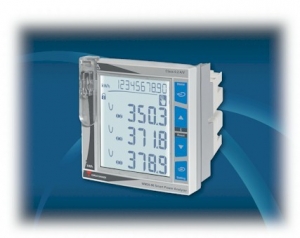

NEW Carlo Gavazzi Three Phase Power Analyzer

This month Carlo Gavazzi announced the new WM20 Three-Phase Power Analyzer, an exciting new product range targeted to assist manufacturers and end users in monitoring and managing escalating energy costs. The WM20 is a modular class 0.5S (kWh) 3-phase power analyzer which can be used for single, two and three phase systems. It is capable of measuring most relevant instantaneous electrical variables, harmonic distortion, and energy generation or consumption.

Four versions are available to manage up to 600 VAC systems with a choice of either a one or five amp current transformer input. All information gathered is available on a large, bright LCD display and can be transmitted by one of the available communication protocols: including Modbus (RS-485, TCP/IP), BACnet, (RS-485, TCP/IP) and Profibus. The new ‘rotating pages’ function automatically shows all measurements in a sequence without having to scroll manually through the keypad. The WM20 Power Analyzer can be used as a stand-alone meter or as a part of a complete VMUC-based energy management system.

This analyzer can be used in a wide number of applications, ranging from building automation (for monitoring of the mains or sub-metering) to industrial automation (for monitoring variables and consumption of a single machine, or for the mains of an entire manufacturing facility).

The features of the WM20 Power Analyzers include:

Modular meter
Class 0.5S (kWh)
Accuracy ±0.2% RDG (current/voltage)
Comprehensive 4 line LCD display
Optical port for programming and data logging
Optional digital output module
Alarms can be linked to relay outputs
Optional communication module
Choice of protocols; Modbus (RS-485, TCP/IP), BACnet (RS-485, TCP/IP) and Profibus
cULus listed and CE marked
Free downloadable configuration software

Click here to download the WM Series Comparison Sheet
