e just developed newest industrial mainboard based on Intel Atom Dual Core N2600, it's powerful, small size, but energy-saving.
Low Profile: L*W*H=146*102mm
Low Power Consumption: 6~9.5w
This new mainboard will be applied in our current industrial touch panel pc sized in 10 inch, 15 inch, 17 inch,etc...
-----------------------------

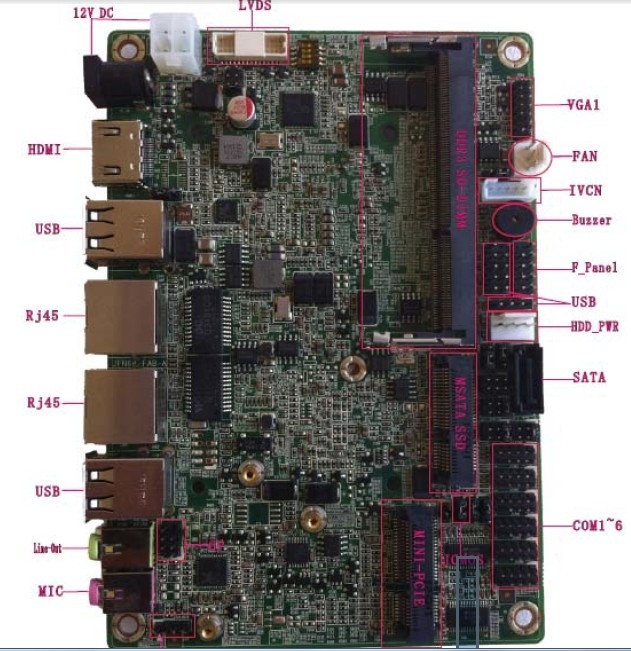

This motherboard is based on Intel Cedar trial platform, it adopts 3.5inch size
with 146*102mm; it uses Intel N2600 (or N2800) +NM10 chipset; it designs one
DDR3 SO-DIMM to support DDR800/1066MHz, up to 4GB size; It integrates
GMA3600 serials graphics, supports high definition decode, builds-in VGA、HDMI
and LVDS(double 24bit) for independent or clone or extended display; it supports
Rear Line-Out & MIC-In、Front Earphones & MIC and 2w AMP speaker; it supports
one SATA port, one mini-PCIE interface for SSD; it supports two RTD8111E Giga
LAN with RJ45 port, 7 USB with four rear port and two front header,it integrates six COM
header to support RS232 mode, and also COM2 supports RS485/RS422 by jumper
adjusted.
---------------------------------
