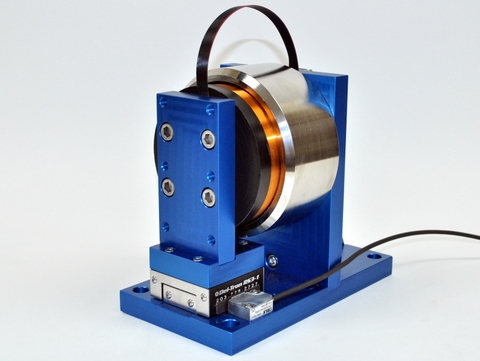

High Force Voice Coil Positioning Stage
H2W introduces its highest force voice coil positioning stage to date. The voice coil positioning stage (P/N VCS06-500-CR-01-MC) is a closed loop system that can be used for high force positioning applications. The stage is driven by an NCC moving coil type linear actuator and is guided by a high precision crossed roller linear bearing. The voice coil has a 0.64" [16.3 mm] stroke, generates 50 lbs [227 N] of continuous force and 150 lbs [681 N] of peak force. It includes a 1 micron resolution linear encoder. Voice coil positioning stages are ideal for applications that require quick, short moves with fast settling times.
Features:
- High force
- High acceleration
- Compact footprint
- Custom strokes and force configurations available
H2W Technologies is dedicated to the design and manufacture of linear and rotary motion products that are used in the motion control industry. The complete line of linear electric motors includes: single and dual axis linear steppers, DC brush and brushless linear motors, voice coil actuators, and AC induction motors. Also offered is a complete line of ball screw, lead screw and belt driven positioning stages.
Other motion control products include: limited angle torque motors for compact, limited angular excursion rotary servo applications, 3 phase brushless rotary servo motors with matching digital servo amplifiers and permanent magnet linear brakes for fail-safe, zero power braking for baggage handling and people moving applications as well as amusement park rides.
With over 75 years combined experience in the linear and rotary motion field, the H2W Technologies team of engineers offers the optimal solution to the most demanding motion control requirements.
For additional information please contact Mark Wilson at H2W Technologies, 26470 Ruether Avenue #102, Santa Clarita, CA 91350; Tel: 888-702-0540, Fax: 661-251-2067, E-Mail: info@h2wtech.com or visit the website at www.h2wtech.com.
