High Acceleration Xy Voice Coil Positioning Stage
High Acceleration Xy Voice Coil Positioning Stage

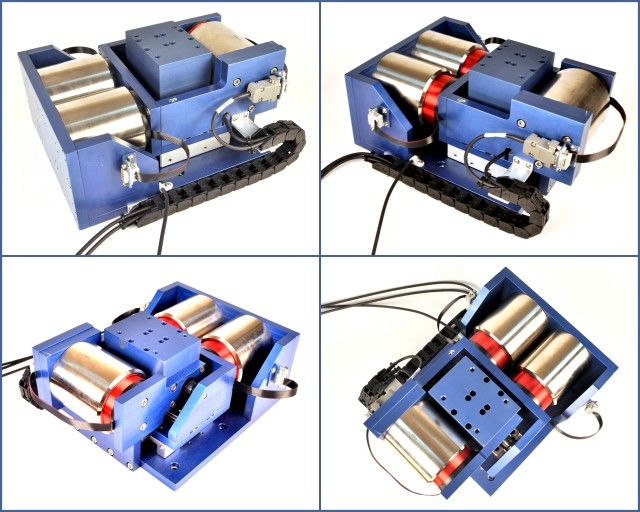

H2W Technologies introduces a high acceleration, voice coil driven, XY positioning stage with a precision bearing system, which minimizes the amount of pitch, yaw, and roll in the system. The voice coil stage (VCS08-700-08-350-CR-01-MC-XY) is a closed loop positioning system that can be used for high force positioning applications. The stage is driven by three NCC moving coil type linear actuators and is guided by dual crossed roller bearings on the X-Axis (bottom axis) and a precision linear rail on the Y-Axis (top axis). Each voice coil has a 0.80" [20.3 mm] stroke; generate 35 lbs [159 N] of continuous force and 105 lbs [477 N] of peak force, or a combined 70 lbs [318 N] continuous force and 210 lbs [953 N] of peak force on the X-Axis (bottom axis). It includes a 1 micron resolution linear encoder on each axis. Voice coil positioning stages are ideal for applications that require quick, short moves with fast settling times.
Features:
- High force
- 2 axis motion control
- High acceleration
- Compact footprint
- Custom strokes and force configurations available
H2W Technologies is dedicated to the design and manufacture of linear and rotary motion products that are used in the motion control industry. The complete line of linear electric motors includes: single and dual axis linear steppers, DC brush and brushless linear motors, voice coil actuators, and AC induction motors. Also offered is a complete line of ball screw, lead screw and belt driven positioning stages. Other motion control products include: limited angle torque motors for compact, limited angular excursion rotary servo applications, 3 phase brushless rotary servo motors with matching digital servo amplifiers and permanent magnet linear brakes for fail-safe, zero power braking for baggage handling and people moving applications as well as amusement park rides.
With over 75 years combined experience in the linear and rotary motion field, the H2W Technologies team of engineers offers the optimal solution to the most demanding motion control requirements.
