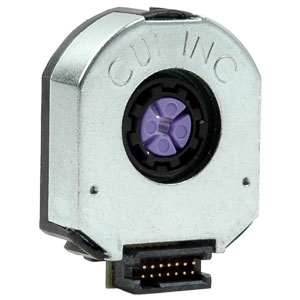

CUI Inc announced a new addition to its high resolution, low-cost AMT encoder line with the AMT303LD series. The encoder generates standard U/V/W commutation signals for vectoring current to brushless motors. Resolution can be set through the AMT303 Demo Kit. Commutation output can accommodate brushless motors with 2, 4, 6, 8, 10 or 20 pole pairs, and is also selectable via the AMT303LD Demo Board. The AMT303LD offers complimentary incremental A/A, B/B, and Z/Z channels for various servo positioning and startup sequences. Additional options include nine mounting patterns and ten bore sizes, creating a flexible platform that is able to accommodate many industry standard motors.
The AMT303LD generates position information using CUI’s patented, capacitive code generation system coupled with a proprietary ASIC. This technology is immune to environmental particulates and magnetic interference, creating a reliable, economical and stable control and positioning solution. The encoder consumes a maximum 10 mA at 5 Vdc, making it ideal for any application where power consumption is a concern.
Commutation zero position may be set by the demo board, OTZ module or ground trigger, removing the need for time consuming mechanical alignment in the mounting process. The available AMT303LD Demo Kit includes an AMT303LD encoder, demo board, interface cables, documentation software and power supply.
“We believe the AMT303 series represents a breakthrough in commutation encoders,” stated Jeff Schnabel, CUI’s VP of Marketing. “Users will really be able to leverage the benefits of our ASIC-based system. When compared to optical encoders typically used in commutation applications, the AMT303 will bring a level of ruggedness and ease of use unrivaled in the industry.”
The AMT303LD and AMT303LD Demo Kit will be available through Digi-Key in July of 2011 with prices starting at $39 per encoder & $152 per demo kit. Contact CUI for OEM pricing.
Summary
Product name: AMT303LD modular encoder
Availability: Q2 of 2011
Possible applications: Brushless dc motor application
Primary features: Commutation signal, line driver output, ease of installation
Cost: $39 per unit through Digi-Key
More information: http://www.amtencoder.com/Product/AMT303
