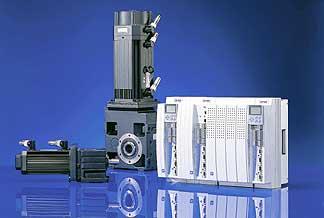

Servo Gear Motors by Lenze
Related Technologies:
Servo motors with helical gearboxes
Lenze helical gearboxes (GST) consist of parallel gearboxes with high performance density and functionality. The open gearbox system is uncompromising. The extensive range of variants in input and output designs includes the right model for you. Output designs include:
Solid shaft
Foot
Flange
Centred pitch circle
Lenze helical geared motors are available in capacities from 0.25 - 45 kW. The high ratio range up to i = 330 – combined with the close stepping = 1.12 – permits precise selection of the required output speed.
Servo motors with low-profile gearboxes
Lenze low-profile gearboxes (GFL) consist of parallel-axial gearboxes with high functionality. The two-stage basic design and high performance density due to ground teething with optimized profiling permits particularly compact designs. The universal-use output pitch circle and cuboids design with external surfaces that have no projecting ribs makes Lenze’s low-profile gearboxes easy to integrate. Output designs include:
Solid shaft
Hollow shaft
Hollow shaft with shrink disk
Foot
Flange
Centred pitch circle
Lenze motors with low-profile gearboxes are available in capacities ranging from 0.25 - 45 kW. The high ratio range up to i = 856 – combined with the close stepping = 1.12 – permits precise selection of the required output speed.
Servo motors with helical-bevel gearboxes
Lenze helical-bevel gearboxes (GKS) consist of bevel gearboxes with high performance density and functionality. The three-stage basic design, low-play connecting elements and high teeth quality thanks to precision manufacture ensure less output torsional play than in comparable gearboxes. Output designs include:
Solid shaft
Hollow shaft
Hollow shaft with shrink disk
Foot
Flange
Centred pitch circle
Lenze motors with helical-bevel gearboxes are available in capacities from 0.25 kW - 45 kW. The high ratio range up to i = 1510 – combined with the close stepping = 1.12 – permits precise selection of the required output speed.
Servo motors and planetary or bevel gearboxes
High ratios with little backlash are offered by Lenze’s planetary and bevel gearboxes. Compact design and optimal attunement to the servo motors set benchmarks in their use for the most varied purposes. Dimensioning allowing for shock loads and ambient temperature ensures reliable operation. The bevel gearbox has solid or hollow shafts on the output side and is available with foot or flange, as desired. These motors have a torque range varying from 15 to 900 Nm with ratios of 1:1 to 1:6. The planetary gearboxes have solid shafts on the output end. There are three different products in our range. Low-backlash gearboxes with a torque range from 70 to 500 Nm and ratios between 1:4 and 1:143. Small planetary gearboxes with a torque range of 19 to 125 Nm and ratios from 1:3 to 1:1000. Planetary gearboxes with a torque range up to 13,000 Nm and ratios between 1:3-3 and 1:245.
About Lenze
For over 50 years, Lenze products have been characterized by superior quality. Today, Lenze mechanical drive systems set the standard for low noise, minimum backlash and pinpoint accuracy. With a comprehensive network of manufacturers representatives and distributors across the United States and Canada, Lenze continues their tradition of providing global system solutions with local implementation and customer support. Lenze products carry UL, cUL, CE and DIN approvals to meet the standards of today's global marketplace. Gears and gearmotors to clutches and brakes Lenze offers a complete line of individual components for a complete drive solution from start to finish. Our goal is to be your single source power transmission partner.
